ACOM1000 Photos
The ACOM1000 is a complete and self-contained linear
amplifier that covers all amateurs bands from 1.8 through 54MHz and provides
over 1000W-output power with less than 60W-exciter drive. Antenna VSWR up to 3:1
is acceptable at full power. Tuning is substantially simplified by a plate-load
True Resistance Indicator (TRI) and by an automatically controlled input
attenuator. Operating parameters are displayed by a multi-functional backlighted
Liquid Crystal Display. Full break-in transmit/receive switching (QSK) is
standard.
|
|
|

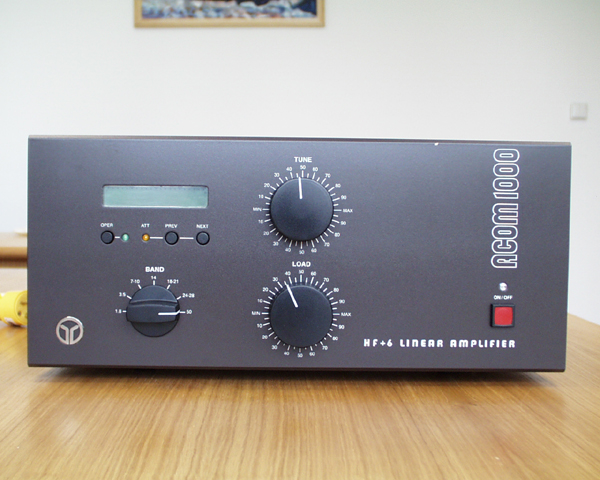

Front View |

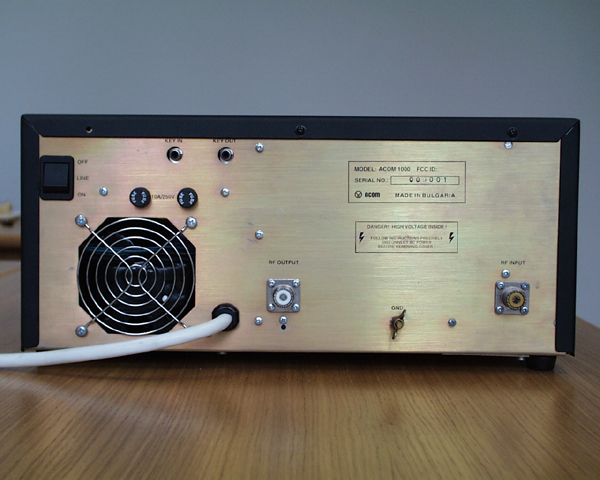

Back View |

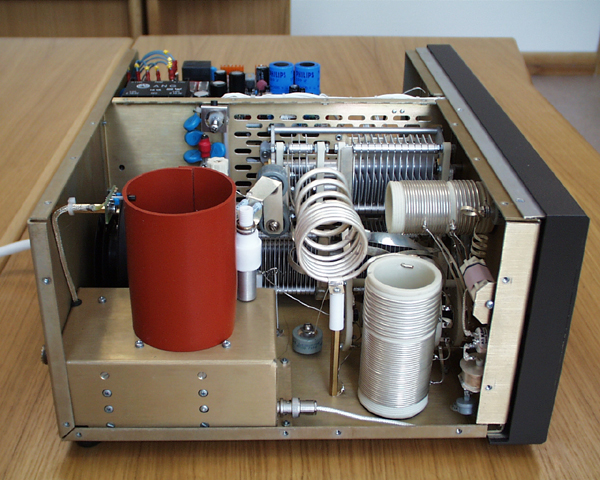

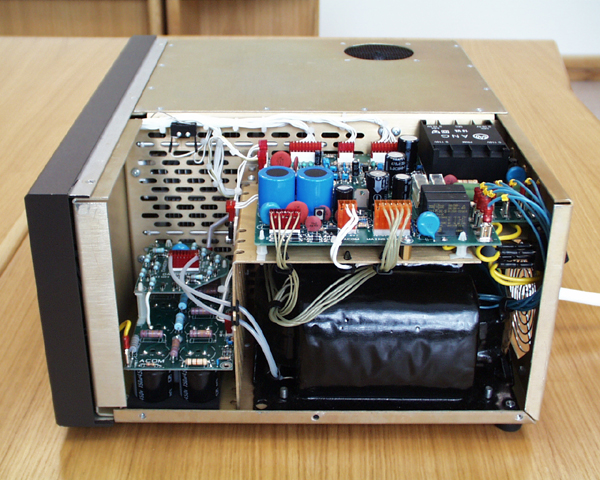

Side View |
|
|
|
Rear View |

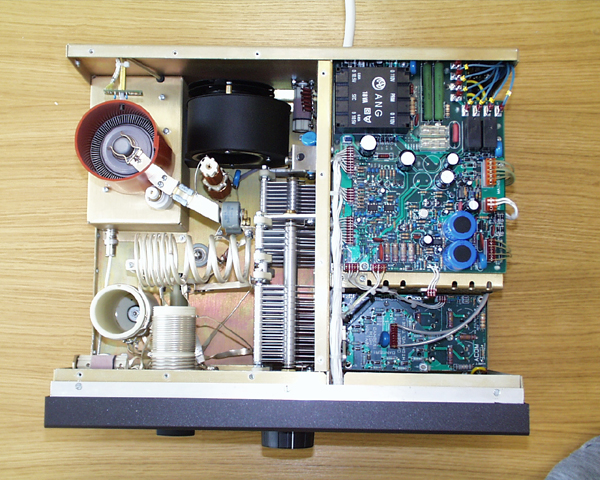

Top View |
Rear View |
|
